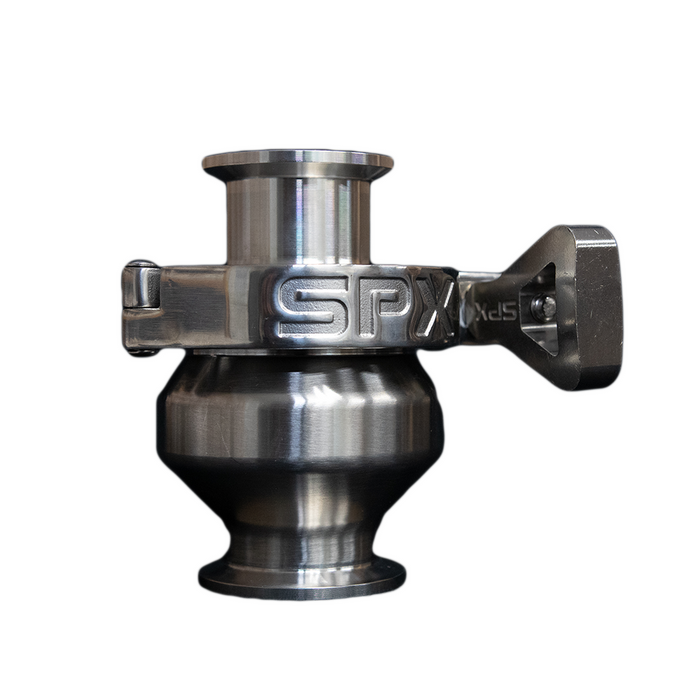

(W45) Waukesha Cherry Burrell Clamp Check Valve, EPDM Seat, LD Spring
Original price
$749.07
-
Original price
$2,080.17
Original price
$749.07
$749.07
-
$2,080.17
Current price
$749.07
- Waukesha Cherry-Burrell brand W45 Check Valves are ‘wafer-style’, where product flow pushes the valve disc away from the seat. In the absence of forward flow pressure, the electropolished spring returns the disc and holds it closed against the seat. Back flow pressure also pushes the disc into the closed position
- Two available seal options: O-ring or Tri Ring; in the disc OD provides tight closure while metal-to-metal contact between the disc and seat allows for long-lasting, durable operation
- Machined from 316L stainless steel bar with all polished surfaces < 32 Ra, the W45 Check Valve has smooth internal surfaces for superior cleaning
- When free-draining is required, the W45 must be vertically mounted
Features
- Positive O-ring seal and metal-to-metal seating for robust, “soft seat” closure
- Limited Stroke to Prevent over-compression: improves spring life, reduces Stem wear, improves cleanability
- CIP capable, 3-A design in 1”-4” (25 mm - 102 mm) sizes
- Machined from bar 316LSS body construction with sanitary polish
- Electro-polished spring for ease in cleaning and longer life
- Spider-guided with long guide-bearing area
Options
- Choice of gasket materials: EPDM or FKM
- Connections: S-Line or Buttweld
- Connection sizes: 1.5” (38 mm), 2” (51 mm), 2.5” (64 mm), 3” (76 mm), and 4” (102 mm)
- Tri Ring seal option for high velocity flow applications (greater then 5ft/s (1.5m/s) or sticky/adhesive type product)
