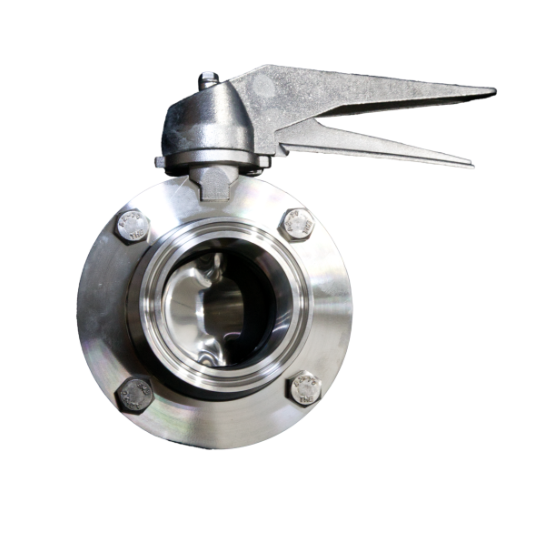

(APVBFV-MP) APV Tri-Clamp Butterfly Valve EPDM (SV1 Series)
SVS1F intermediate flange design allows simple removal and easy access of valves that are in lengthy or fixed pipelines.
Disc and Body: 316 stainless steel with sanitary finish
Seal: EPDM (HNBR, FPM, VMQ available upon request)
Internal Surface Finish: ≤32 Ra (≤0.8µ) - other finished available upon request
SV1: 1.0"- 4.0" O.D. Tube
One actuator covers all diameter from 1.0" (25mm) - 4.0" (100mm)
Operating Pressure: Maximum line and control air pressure 145 psi (10bar)
